HAMBURG H-2 (CB)
Application
HAMBURG H-2(CB) is halogen free, environmentally friendly, flexible, ultra thin-wall, flexible, flame-retardant, irradiated cross-linking heat-shrinkable modified polyolefin tubing, It is designed for applications that require an ultra thin wall for rapid shrinking and space saving. Low shrink temperature further reduces installation time and the risk of damage to temperature-sensitive components.
Feature/Benefits
- Shrink ration:2:1
- Low shrink temperature
- Ultra thin-wall, rapid shrinking.
- Very flexible, flame-retardant
- No added halogens, free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and others (PBBOs, PBBEs, and PBDEs) and toxic heavy metal (Pb, Cd, Hg, Cr6+) compounds, which are classified as environmentally hazardous substances. Conforms to European RoHS environmental directive.
- Wide range of sizes and colors
Operation Temperature
- Temperature range: -55℃~125℃
- Shrink temperature: 70℃
- Full recovery temperature: 125℃
- Longitudinal shrinking: -5 ± 5%
Standards/Approvals
- UL224 E255394 125℃ 300V VW-1
- CSA C22.2 238014 125℃ 150V VW-1

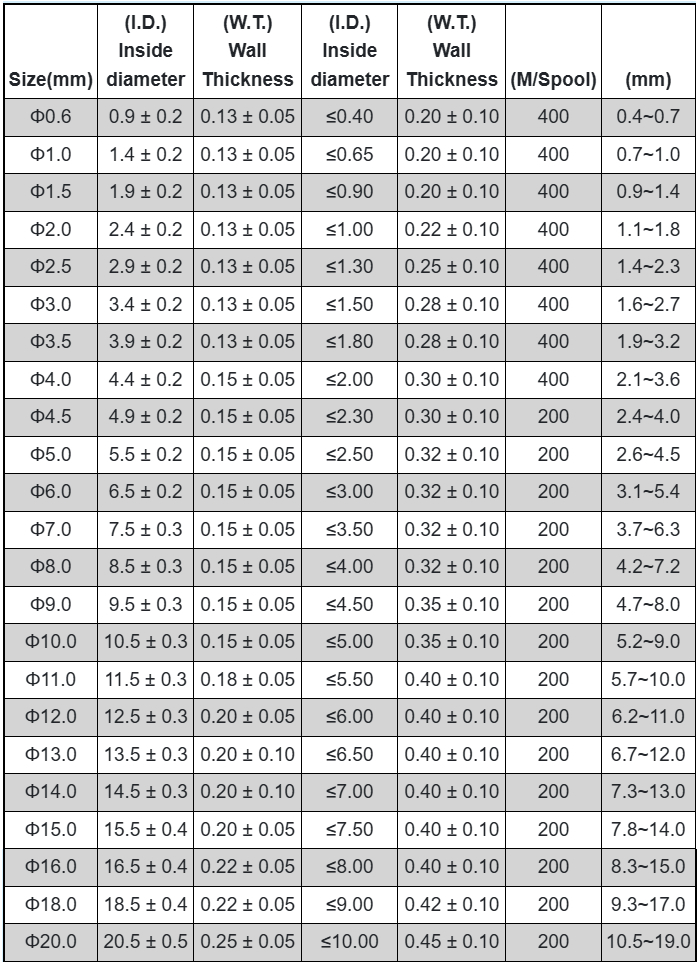

Product Size
