HAMBURG H-2
Application
HAMBURG H-2 is halogen free, environmentally friendly, flexible, flame-retardant, irradiated crosslinking heat-shrinkable modified polyolefin tubing. It contains no added halogens, and is free of PCBs, PCBs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and others (PBBOs, PBBEs and PBDEs) and toxic heavy metal (Pb, Cd, Hg, Cr6+) compounds, which are classified as environmentally hazardous substances. This high-reliability product is widely used for insulation or jacketing of wire harness, strain relief of wire terminations and connections, bundling of wire harness, protection of soldered points, insulation and capsule of electronic components, anti-corrosive protection, identification and color coding, etc.
Feature/Benefits
- Shrink ration:2:1
- Low shrink temperature
- Very flexible, flame-retardant
- Good thermal stability
- Excellent physical, chemical and electrical properties
- No added halogens, free of PCBs, PCBs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and others (PBBOs, PBBEs, and PBDEs) and toxic heavy metal (Pb, Cd, Hg, Cr6+) compounds, which are classified as environmentally hazardous substances, Conforms to European RoHS environmental directive.
- Wide range of sizes and colors
Operation Temperature
- Temperature range: -55℃~125℃
- Shrinking temperature: 75℃
- Full recovery temperature: 125℃
- Longitudinal shrinking: 0 ± 5%
Standards/Approvals
- UL224 E255394 125℃ 600V VW-1
- cUL224 E255394 125℃ 600V VW-1
- CSA C22.2 238014 125℃ 600V VW-1
Surface / Print
HAMBURG-A H-2 125℃
E255394 VW-1 CSA -F- (Ф)

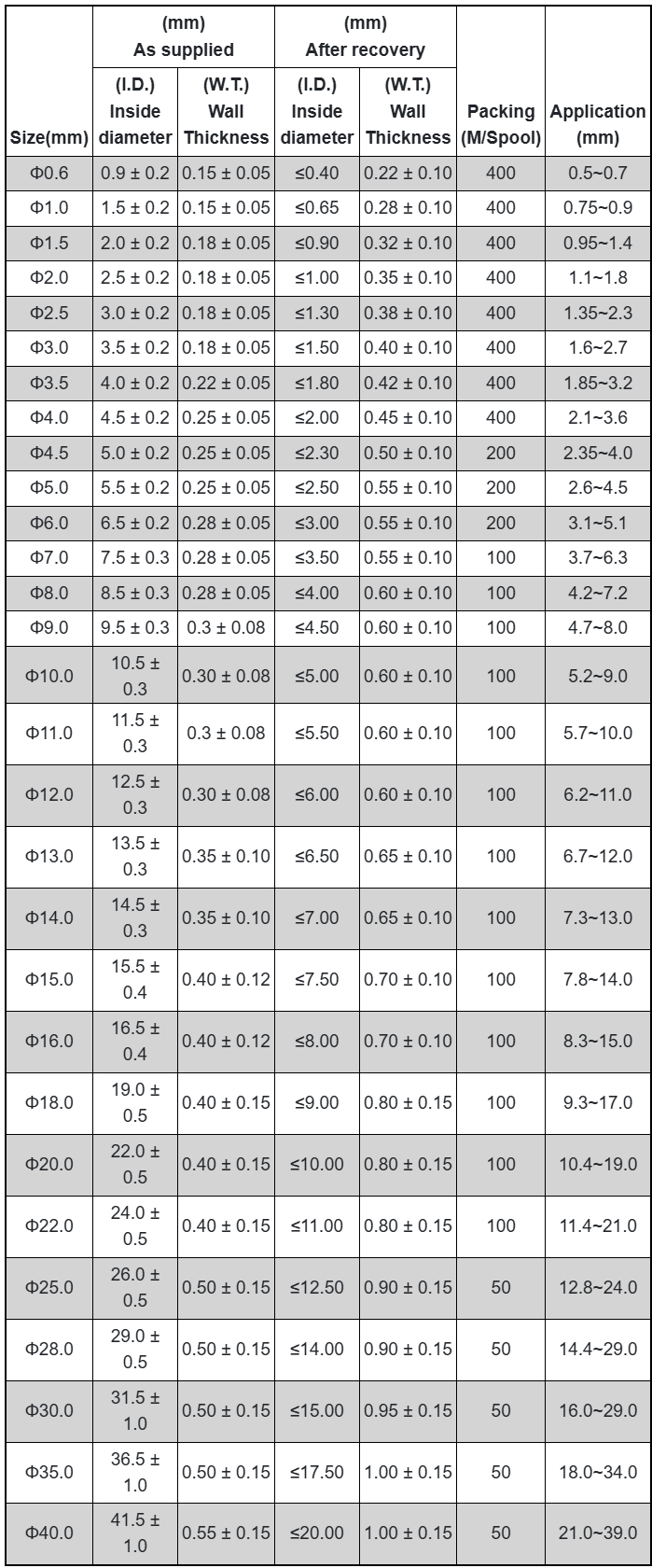

Product Size
