FFC

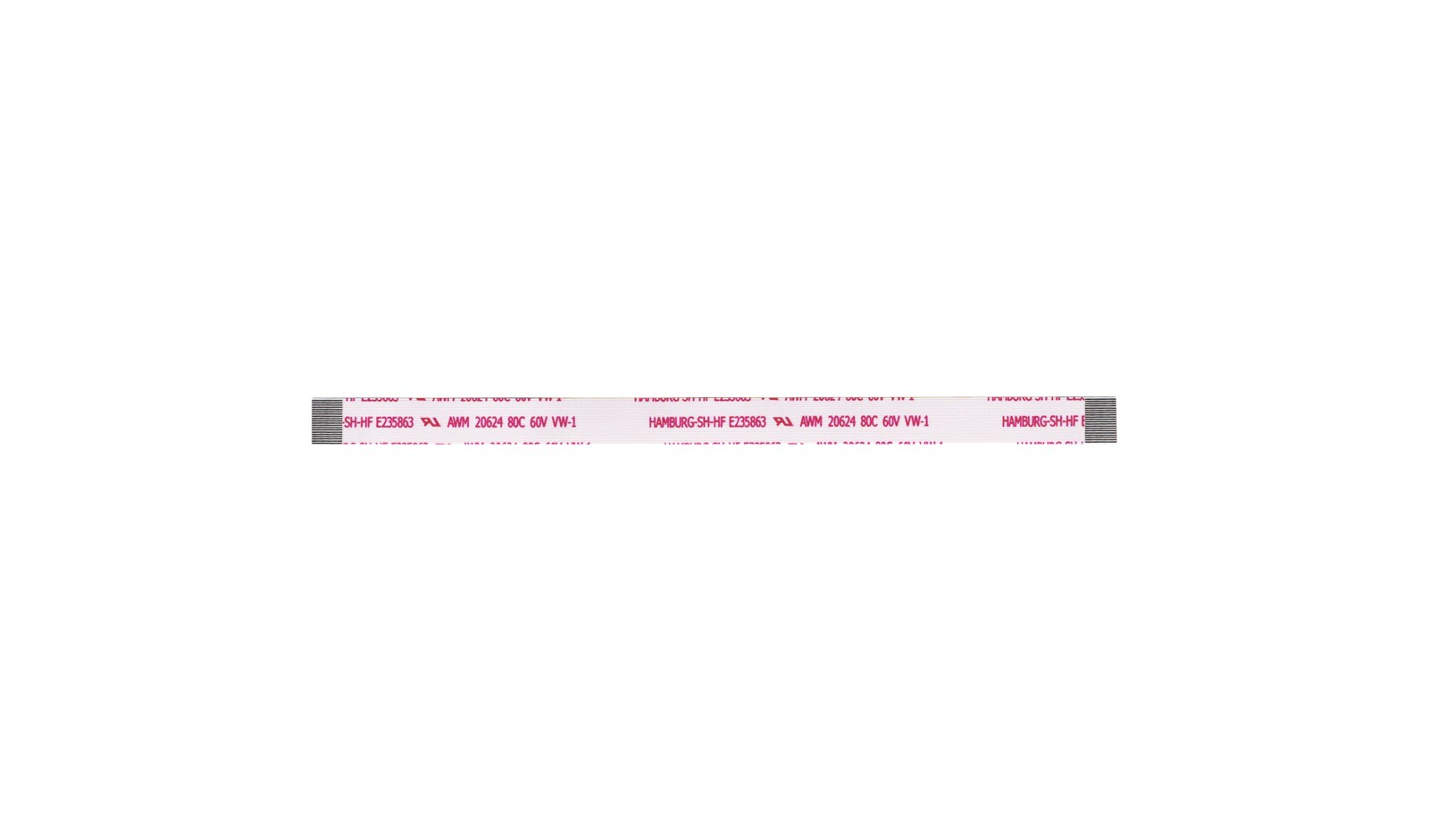

0.3 pitch
• It has 20 conductors.
• “Pitch” means the distance between center of a conductor and next one.

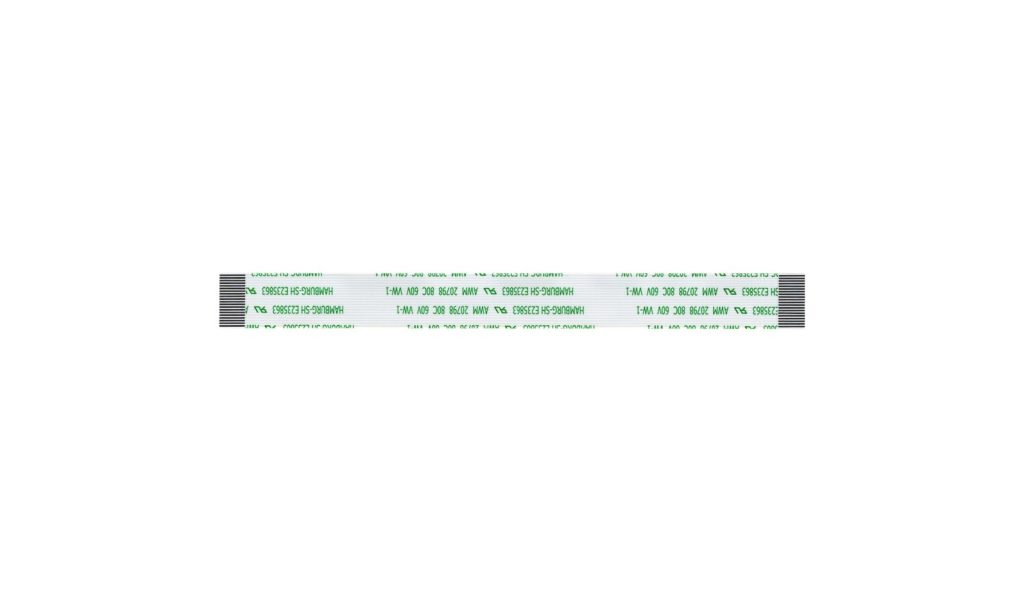

0.5 pitch
• It has 20 conductors.
• “Pitch” means the distance between center of a conductor and next one.

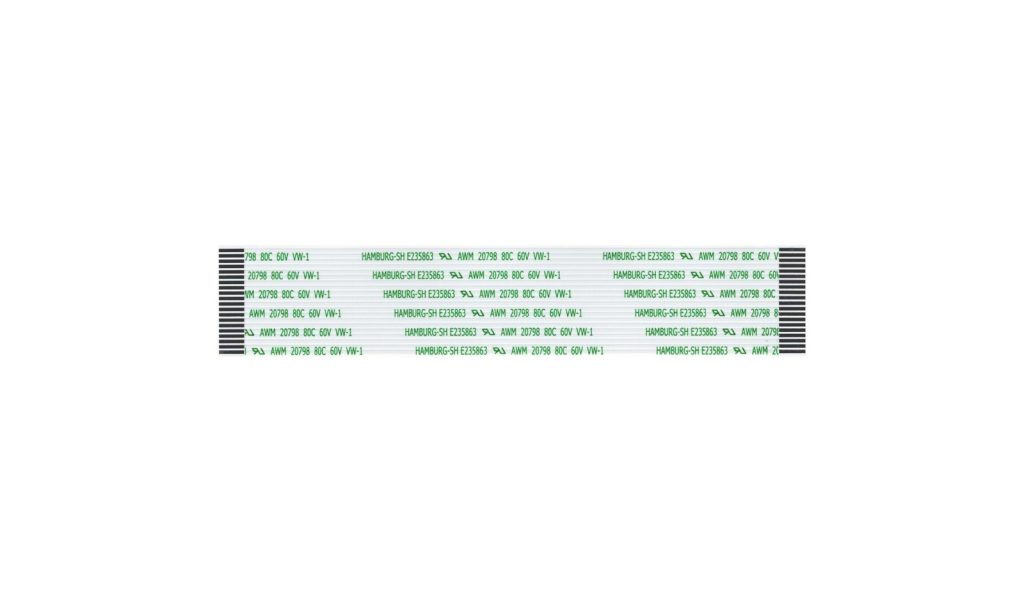

1.0 pitch
• It has 20 conductors.
• “Pitch” means the distance between center of a conductor and next one.

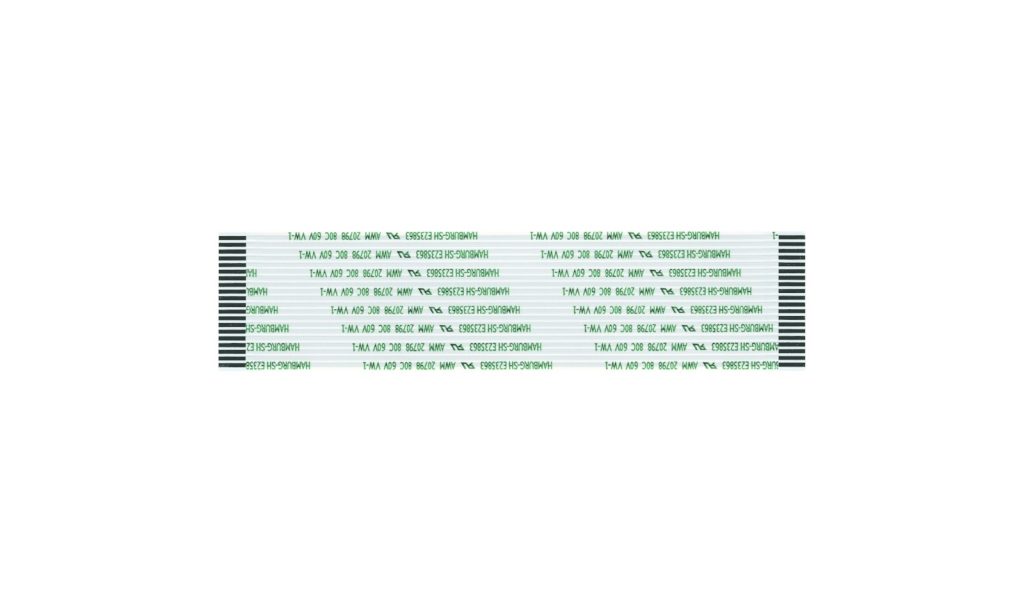

1.25 pitch
• It has 20 conductors.
• “Pitch” means the distance between center of a conductor and next one.

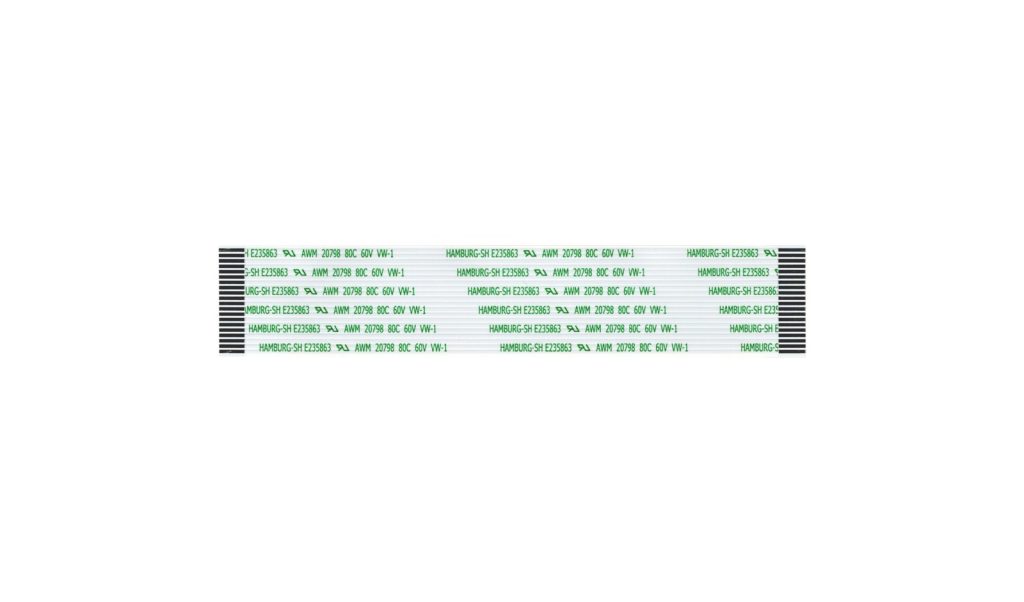

A type
• It is 1.0mm pitch type.
• Stripped at both ends on two sides with reinforcements on the same side.

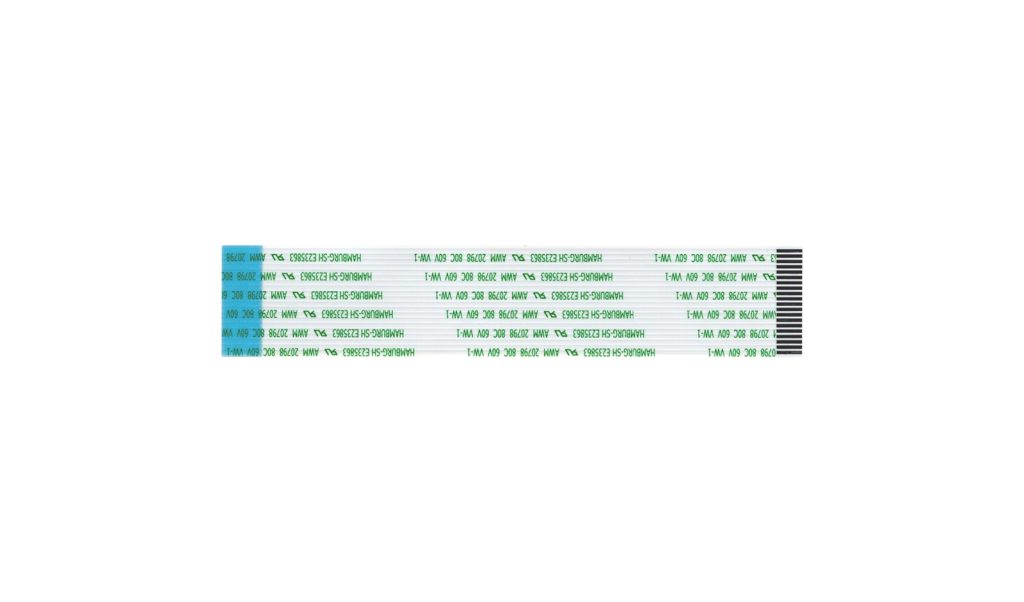

B type
- • It is 1.0mm pitch type.
- • Stripped at both ends on one sides with reinforcements on opposite sides.

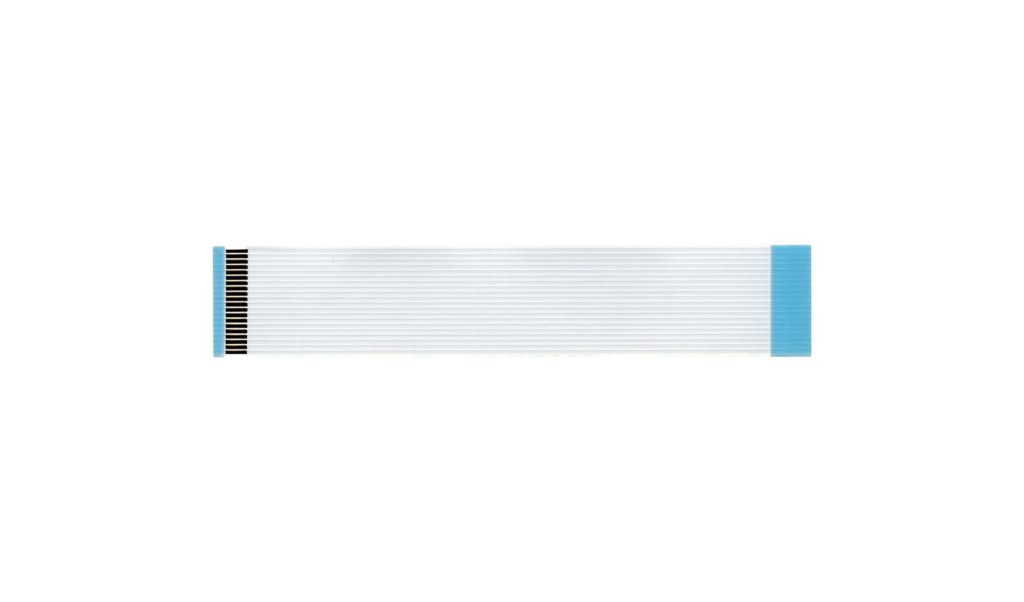

E type
• It is 1.0mm pitch type.
• E type can be soldered directly onto PCBs.
• Stripped on one side with reinforcements on one side.

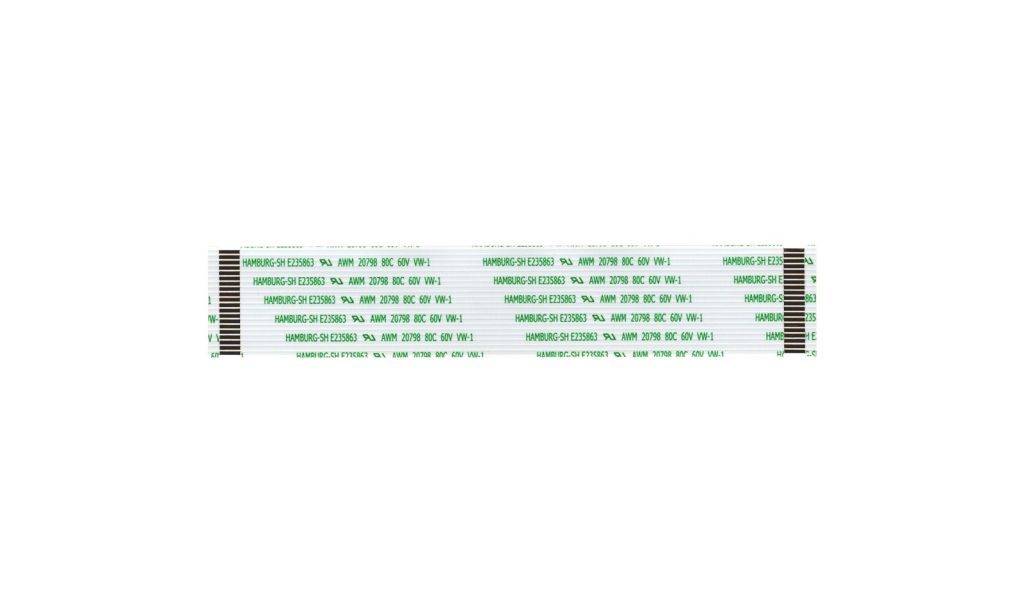

F type
• It is 1.0mm pitch type.
• F type can be soldered directly onto PCBs.
• Stripped at both ends on two sides without reinforcements.
