A-Series Pitch 1.0

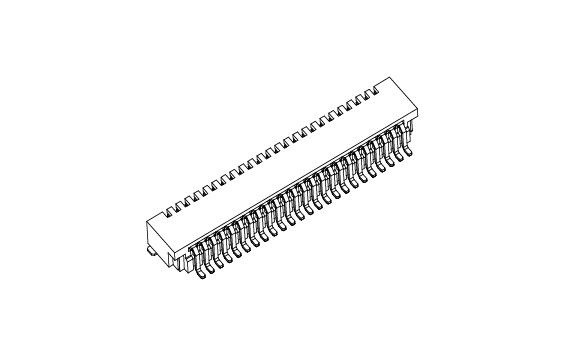

- Pitch 1.0mm, 04~40 pin
- SMT Type (staggered)
- Dim.:〔(Pin*1.0)+3.0〕L x 3.00 W x 5.20 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Vertical, Normal Type
- Non-ZIF Type
- Pitch 1.0mm, 04~40 pin
- DIP Type (Normal Type)
- Dim.:〔(Pin*1.0)+3.0〕L x 3.00 W x 5.10 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Vertical, Normal Type
- Non-ZIF Type
- Pitch 1.0mm, 04~30pin
- SMT Type (With Holder)
- Dim.:〔(Pin*1.0)+3.6〕L x 4.75 W x 3.00 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Horizontal, Top Contact Type
- Non-ZIF Type

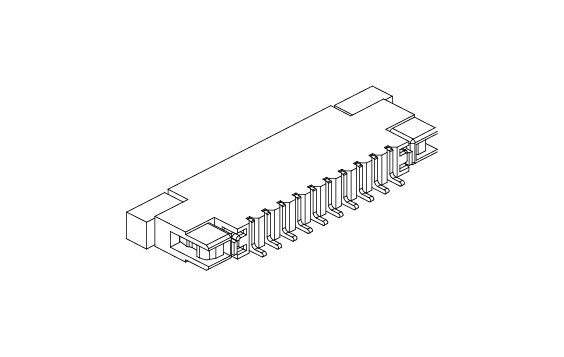

- Pitch 1.0mm, 04~30 pin
- SMT Type (With Holder)
- Dim.:〔(Pin*1.0)+3.0〕L x 4.75 W x 3.00 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Horizontal, Top Contact Type
- Non-ZIF Type

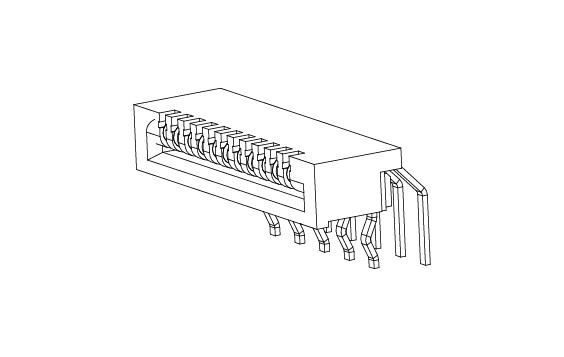

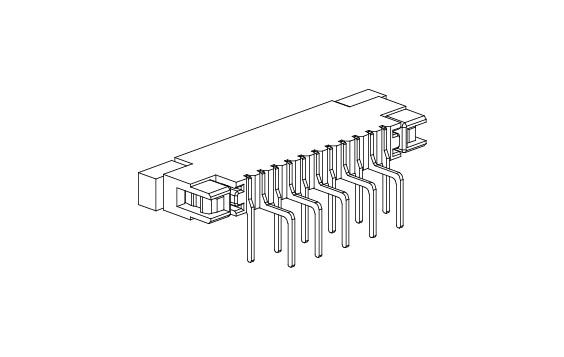

- Pitch 1.0mm, 04~30 pin
- DIP Type (Normal & Reverse Type)
- Dim.:〔(Pin*1.0)+3.6〕L x 4.75 W x 2.90 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Horizontal, Top Contact Type
- Non-ZIF Type
- Pitch 1.0mm, 04~32 pin
- SMT Type (With Holder)
- Dim.:〔(Pin*1.0)+6.0〕L x 4.80 W x 1.95 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Horizontal, Top Contact Type
- Slider Type
- Pitch 1.0mm, 04~32 pin
- SMT Type (With Holder)
- Dim.:〔(Pin*1.0)+6.0〕L x 4.80 W x 1.95 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Horizontal, Top Contact Type
- Slider Type
- Pitch 1.0mm, 04~32 pin
- DIP Type (Reverse Type)
- Dim.:〔(Pin*1.0)+6.0〕L x 4.80 W x 1.90 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Horizontal, Top Contact Type
- Slider Type

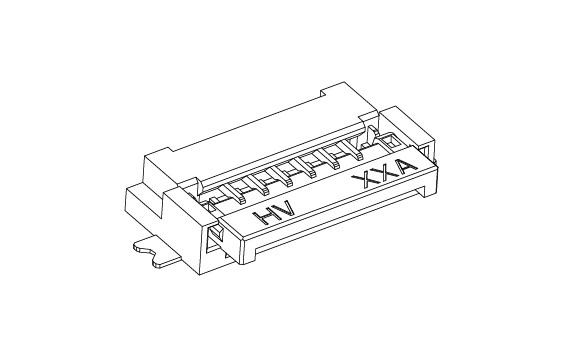

- Pitch 1.0mm, 04~32 pin
- SMT Type (With Holder)
- Dim.:〔(Pin*1.0)+3.0〕L x 4.80 W x 1.95 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Horizontal, Bottom Contact Type
- Slider Type
- Pitch 1.0mm, 04~32 pin
- SMT Type (With Holder)
- Dim.:〔(Pin*1.0)+3.0〕L x 4.80 W x 1.95 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Horizontal, Bottom Contact Type
- Slider Type
- Pitch 1.0mm, 04~32 pin
- SMT Type (With Holder)
- Dim.:〔(Pin*1.0)+4.2〕L x 4.70 W x 2.00 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Horizontal, Top & Bottom Contact Type
- Non-ZIF Type
- Pitch 1.0mm, 04~40 pin
- SMT Type
- Dim.:〔(Pin*1.0)+7.2〕L x 3.00 W x 5.45 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Vertical, Normal Type
- Slider Type
- Pitch 1.0mm, 04~40 pin
- SMT Type (With Holder)
- Dim.:〔(Pin*1.0)+9.2〕L x 3.00 W x 5.50 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Vertical, Normal Type
- Slider Type
- Pitch 1.0mm, 04~30 pin
- SMT Type (With Holder)
- Dim.:〔(Pin*1.0)+3.9〕L x 4.10 W x 1.50 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Horizontal, Bottom Contact Type
- Front ZIF Type
- Pitch 1.0mm, 04~30 pin
- SMT Type (With Holder, big ground pad)
- Dim.:〔(Pin*1.0)+3.9〕L x 5.80 W x 2.00 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Horizontal, Bottom Contact Type
- Front ZIF Type
- Pitch 1.0mm, 04~30 pin
- SMT Type (With Holder, small ground pad)
- Dim.:〔(Pin*1.0)+3.9〕L x 5.80 W x 2.00 H mm
- FPC/FFC Thickness: 0.30 mm
- Operation: Horizontal, Bottom Contact Type
- Front ZIF Type

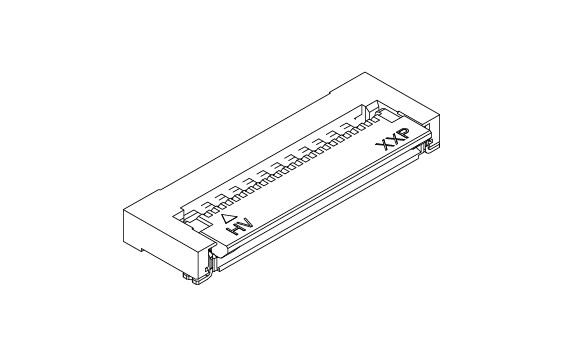

- Pitch 1.0mm, 04~40 pin
- SMT Type (With Holder)
- Dim.:〔(Pin*1.0)+5.4〕L x 6.15 W x 2.00 H mm
- FPC/FFC Thickness: 0.30 mm, with buckle
- Operation: Horizontal, Bottom Contact Type
- Front ZIF Type

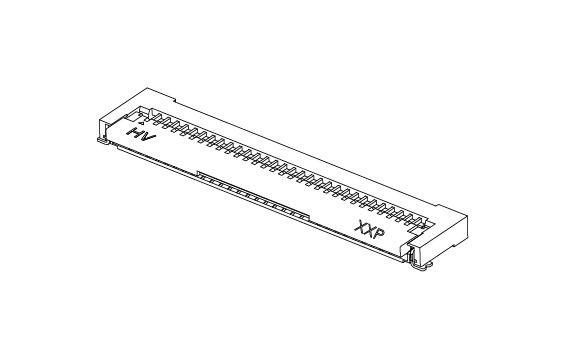

- Pitch 1.0mm, 04~40 pin
- SMT Type (With Holder)
- Dim.:〔(Pin*1.0)+5.4〕L x 6.15 W x 2.00 H mm
- FPC/FFC Thickness: 0.30 mm, with buckle
- Operation: Horizontal, Bottom Contact Type
- Front ZIF Type
